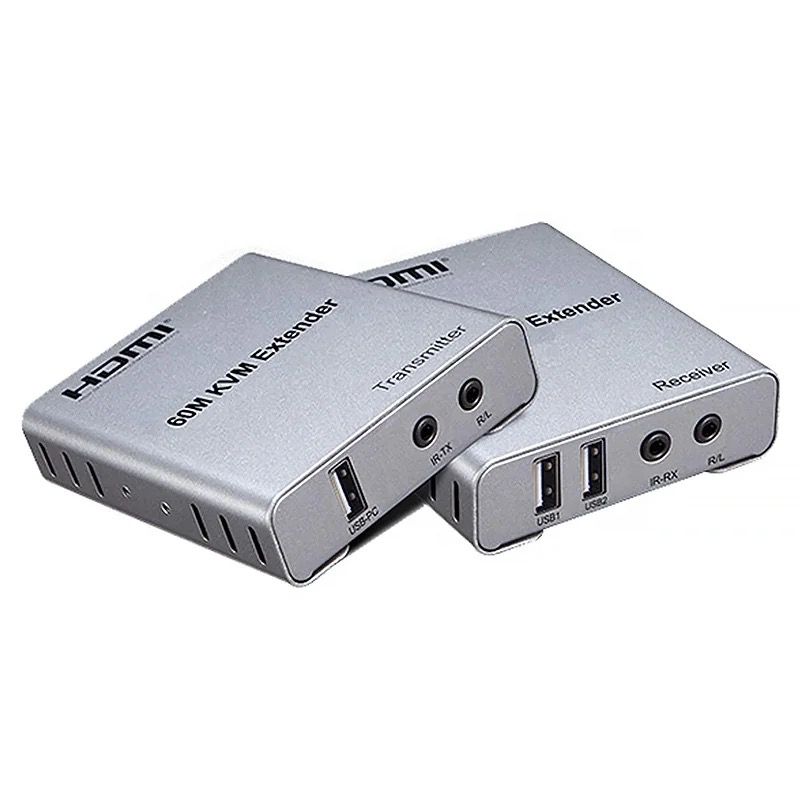

The E-link 60M HDMI KVM Extender over Cat-6 IR Extender with Audio is a device designed to extend HDMI, keyboard, video, and mouse (KVM) signals over a Cat-6 cable for distances up to 60 meters (roughly 180 feet). It allows remote control of a computer or device using a keyboard, mouse, and display (typically a monitor or TV) at a distance, making it ideal for situations where the device being controlled needs to be placed far away from the user.
Here are the key features typically associated with such a product:
Key Features:
HDMI Signal Extension:
- Extends HDMI video and audio signals up to 60 meters over Cat-6 cables.
- Supports high-definition video resolutions, typically up to 1080p.
KVM Functionality:
- Allows for remote control of computers or devices using a keyboard and mouse.
- Ideal for data centers, server rooms, or any environment where the user needs to control a computer from a distant location.
IR (Infrared) Extender:
- Allows you to send and receive infrared signals to control devices (such as a TV or AV equipment) at a distance.
- The extender is equipped with IR pass-through so that you can still control connected devices remotely (for example, to change channels or volume settings on a TV).
Audio Support:
- Provides audio extension alongside video, ensuring that both the HDMI video signal and the associated sound are transmitted to the remote location.
Cat-6 Cable:
- Utilizes standard Cat-6 cable, which is widely available and affordable, to transmit the KVM signals over a long distance.
- Cat-6 cable is capable of supporting high-speed data transfer with minimal signal degradation, making it suitable for the high-bandwidth requirements of HDMI video.
Plug-and-Play:
- Typically requires little to no setup or configuration, making it user-friendly.
- Simply plug in the transmitter to the source device and the receiver to the display and input devices.
Specifications:
| Feature | Description |
|---|---|
| Transmission Range | Up to 60 meters (depending on cable type) |
| Input Connector | 1 x HDMI 19-pin (male) |
| Output Connector | 1 x HDMI 19-pin (female) |
| Power Supply | 12V DC |
| Supported Resolutions | 1080p, 720p, etc. |
| Audio Formats | PCM, DTS, Dolby Digital, DTS-HD, etc. |
| Cable Type | Cat 5e/6/7 |
| Dimensions | 100mm x 50mm x 30mm |
| Weight | 500g |
| Operating Temperature | 0-50°C |
| Storage Temperature | -10-60°C |
| Use Cases: |
- Remote Server Management: Ideal for data centers or IT environments where servers or computers need to be accessed from a distant location.
- Home Theaters: Can be used to extend the HDMI signal from an AV receiver to a projector or TV located far from the source.
- Digital Signage: Useful for extending HDMI signals in large facilities for digital signage displays.
- Workstations: Great for setups where multiple computers need to be controlled from a single workstation.
Advantages:
- Cost-Effective: Cat-6 cables are relatively inexpensive and readily available.
- Long-distance Support: Capable of extending signals over substantial distances without losing quality.
- Simplified Installation: No complex wiring or setup required.
Certifications:
- CE, RoHS certified
- UL listed (for safety)
