Specification

Main Feature
Type	Managed Switch
Port	Port: 24 Gigabit Port: 28 SFP Port: 4
Network Standard	802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z
MAC Address Table	Total number of MAC addresses: 16,000
Hardware Features
Power Supply	100 to 240 VAC, 50 / 60 Hz
Dimensions (L x W x H)	445 x 240 x 44mm
Weight	2.63 Kg
Manufacture Warranty
Warranty	1 Year Warranty

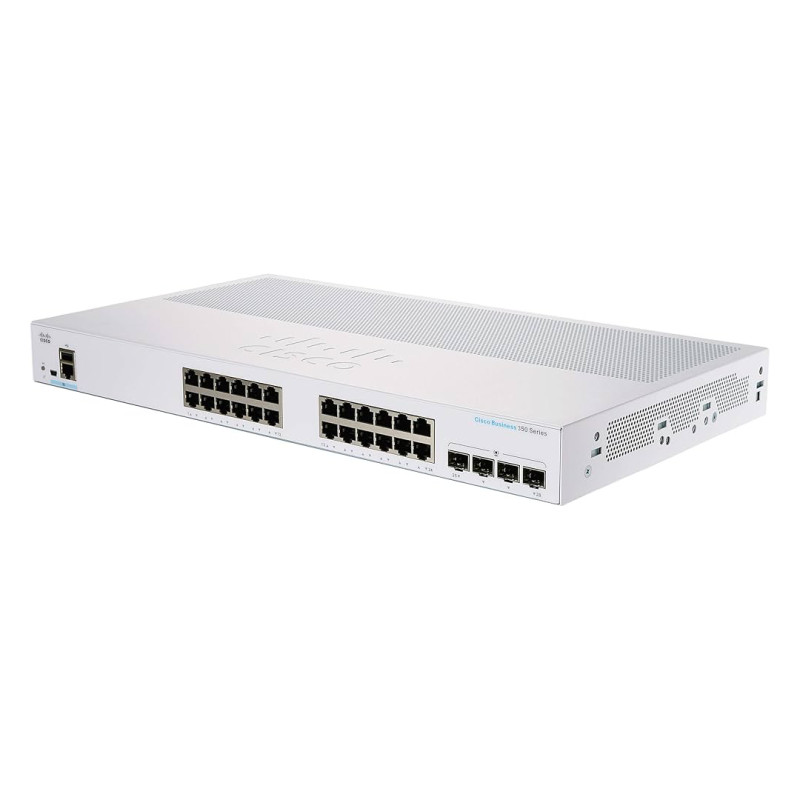

The Cisco CBS350-24T-4G-EU is a 24-port gigabit managed switch designed for small to medium-sized businesses. It is part of Cisco's CBS350 Series, offering features tailored to provide both ease of management and advanced networking capabilities.
Here are the key features and details of the Cisco CBS350-24T-4G-EU switch:
1. Ports & Connectivity:

• 24 Gigabit Ethernet Ports: The switch provides 24 standard Gigabit Ethernet ports for connecting network devices.

• 4 Gigabit SFP Ports: It comes with 4 dedicated SFP (Small Form-factor Pluggable) ports for fiber-optic connections, providing flexibility for high-speed long-distance connections.

2. Layer 2 and Layer 3 Features:

• The switch supports Layer 2 (Data Link) and Layer 3 (Network) functionalities, offering features such as VLANs, routing, and IP-based management.

• Static Routing: You can configure static routes to manage traffic between VLANs, improving routing efficiency in the network.

3. Management:

• Web-based GUI: The switch features an intuitive web interface, which makes it easy to configure and monitor.

• CLI (Command-Line Interface): Advanced users can configure the switch using the CLI for more granular control over the settings.

• Cisco Network Assistant: The CBS350 series supports the Cisco Network Assistant, which is a network management tool for centralized management.

4. Security Features:

• Port Security: Limits the number of MAC addresses per port to protect against unauthorized access.

• Access Control Lists (ACLs): You can define policies to control traffic flow within your network based on IP addresses, MAC addresses, and more.

• 802.1X Authentication: Offers enhanced network security by ensuring only authorized devices can connect.

5. Quality of Service (QoS):

• It supports advanced QoS features to prioritize traffic, ensuring that critical applications (such as voice or video) get the bandwidth they need.

6. Power over Ethernet (PoE):

• While this model does not provide Power over Ethernet (PoE), it can still be used for basic network switching without the need to supply power over the Ethernet cable.

7. Energy-Efficient Design:

• The CBS350 series includes energy-efficient technology, such as IEEE 802.3az Energy Efficient Ethernet(EEE), which reduces power consumption during low traffic conditions.

8. Advanced Layer 2 Features:

• The switch supports features like Spanning Tree Protocol (STP), Link Aggregation (LACP), and VLAN Trunking, allowing for better network stability and redundancy.

9. Reliability and Redundancy:

• Hot-swappable Fans and Power Supplies (on some models) provide extra reliability for continuous network uptime.

10. Software and Firmware:

• Cisco offers lifetime limited warranty and software updates for the switch, ensuring that the device remains up-to-date with the latest security patches and features.

Use Cases:

• Small to Medium Businesses: The Cisco CBS350-24T-4G-EU is ideal for SMBs requiring a scalable, secure, and manageable network infrastructure.

• Branch Offices or Remote Locations: It's also well-suited for branch offices needing basic routing and advanced network management features.

Cisco SmartNet Support:
You can also opt for Cisco’s SmartNet service, which provides 24/7 access to Cisco experts, online support, and hardware replacement.
