| Price | 4,500৳ |
| Regular Price | ৳ |
| Status | In Stock |
| Product Code | 7009 |
| Brand |
| POE SWITCH | ||

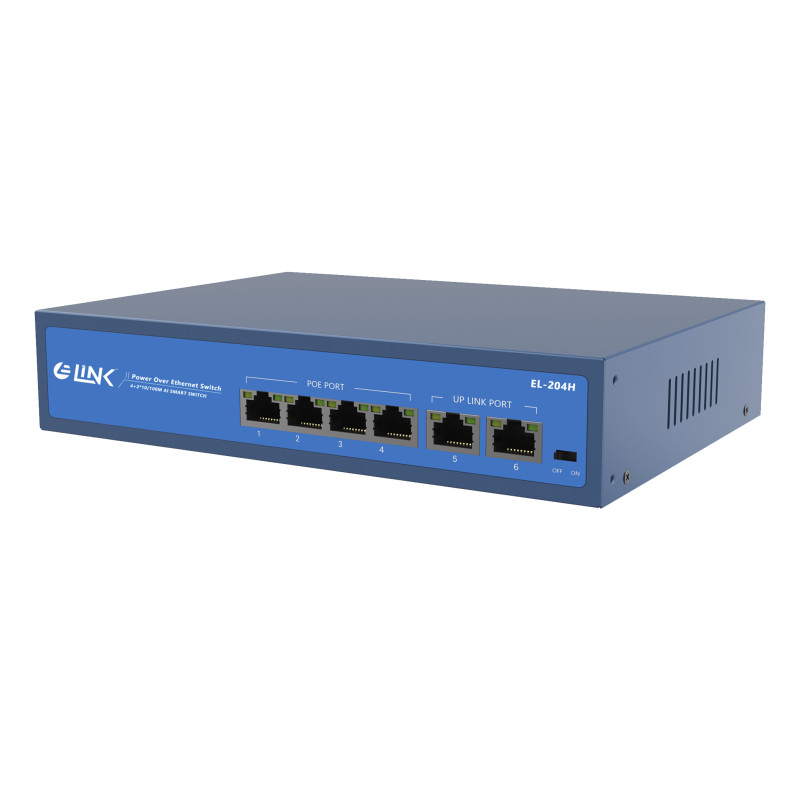

| Product | 4 Port Networking POE Switch | |
| Model | EL-204H | |
| PoE Port | 1 to 4 support IEEE802.3AF/AT Standard | |
| Output Power | 15.4W/30w : IEEE802.3af/at | |
| Power Pin | Both 1/2+ 3/6- and 4/5+7/8- | |
| Whole Power | <120W (52V 2.3A) | |
| PoE Protocol | IEEE 802.3af/IEEE 802.3at | |
| PoE Type | End-span | |
| Power Distance | <250m | |
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at | |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair | |
| Data Distance | <250m | |
| Switch Capability | 22Gbps | |
| Forwarding Mode | Store and forward | |
| Forwarding Rate | 100BASE-tx: 14800pps/port | |
| MAC Address | MAC address table 2K | |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging EEEBO2.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
| LED Indicator | Each port occupied 1 LINK/ACT.1000Mbps, POE Status Indicator, Whole power indicator |
|
| Working Environment | Working temperature: -10 --55 C | |
| Weight | 1.2kg | |
| Size | 200x145x44(L*W*H}mm | |
| Warranty | 18 Months | |
· Intelligent PoE
· PD Alive (PoE Watchdog)
· Long Distance PoE Transmission
· Smooth Transmission
· Wide Working Temperature: –10 to 55°C (14°F to 131°F)
· Port Isolation
