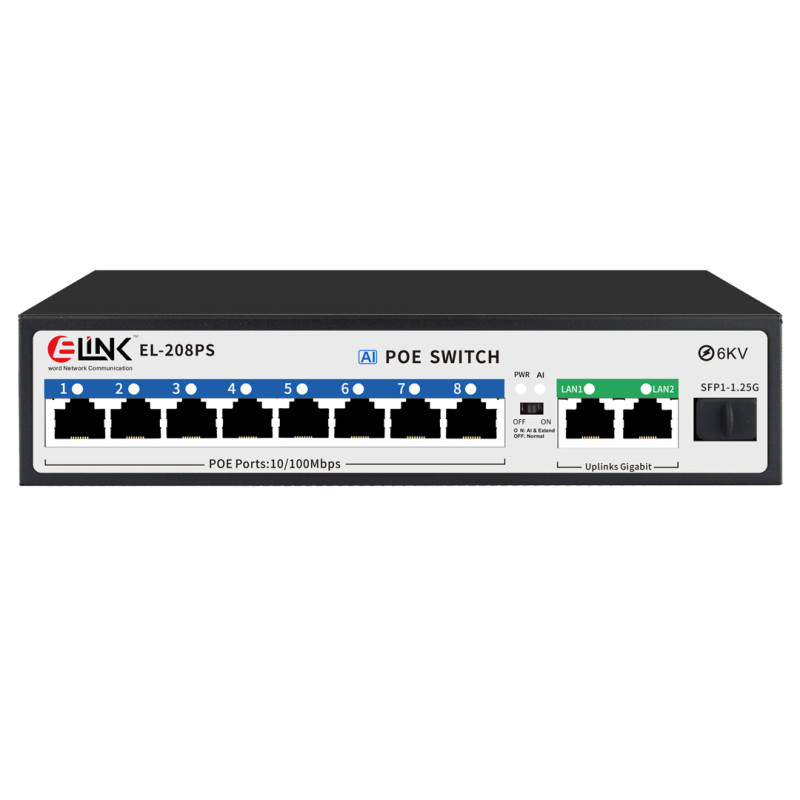

E-Link EL-208PS 8-Port PoE 2-Port Uplink Gigabit 1SFP PoE Switch

Price 6,500৳
Regular Price
Status In Stock
Product Code 7135
Brand
Key Features
  • 8*10/100mbps PoE Port, 2*100/1000mbps, 1*1.25G SFP
  • 250m Distance ,Support IEEE802.3AF/AT
  • Whole Power: 120W(52V 2.3A)
  • All port supported by MDI/MDIX auto
  • View More Info

Payment Options

Quantity :
remove add

Please Contract

Phone Number: +880 1324-418026

Specification:

POE SWITCH
Product 10 Port Networking PoE Switch
Model EL-208PS
Lightning Protection 6KV
Surge Protection 8KV
PoE Port 1 to 8 support IEEE802.3AF/AT Standard
Output Power 15.4W/30w : IEEE802.3af/at
Power Pin Both 1/2+ 3/6- and 4/5+7/8
Whole Power <120W (52V 2.3A)
PoE Protocol IEEE 802.3af/IEEE 802.3at
PoE Type End-span
Power Distance <250m
Network Standard IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at
Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance <250m
Switch Capability 24Gbps
Forwarding Mode Store and forward
Forwarding Rate 100BASE-tx: 14800pps/port
MAC Address MAC address table 8K.
Port Function Power priority mechanism, fast and forward, MAC
automatic learning and aging EEEBO2.3X Full-duplex
and mode and backpressure for Half-duplex mode.
LED Indicator Each port occupied 1 LINK/ACT.1000Mbps,
POE Status Indicator, Whole power indicator
Working Environment Working temperature: -10 --55 C
Weight 1.2kg
Size 200x145x44(L*W*H}mm
Warranty 01 Year

Description :

The E-Link EL-208PS 8-Port 10/100M PoE+ Switch is a network switch designed for powering and connecting devices like IP cameras, phones, and wireless access points through Power over Ethernet (PoE+). Here's a breakdown of the main features:

Key Features:

  1. 8-Port 10/100M PoE+ Ports:

    • These are standard Ethernet ports that support PoE+, which allows the switch to power devices that require it (like cameras, phones, or access points) through the same Ethernet cable used for data transmission.
    • PoE+ typically provides up to 25.5W per port, supporting more power-hungry devices than regular PoE.
  2. Gigabit Uplink Ports:

    • It has 2 Gigabit uplink ports (usually labeled as 10/100/1000M), which provide a high-speed connection to another network switch or router. These can handle data speeds up to 1 Gbps, enabling faster data transfer across your network.
  3. SFP Slot (1.25G):

    • The SFP (Small Form-factor Pluggable) slot supports fiber connections, typically used for long-distance connections or network extensions. The 1.25G indicates the data transfer rate supported by the SFP slot, which is 1.25 gigabits per second.
  4. Switching Capacity and Performance:

    • This switch can typically handle a combined switching capacity of several gigabits per second, allowing it to handle multiple devices without slowing down the network.
    • Layer 2 functionality with features like MAC address learning, VLAN support, and QoS (Quality of Service) can provide efficient and secure traffic management.
  5. Compact and Cost-Effective:

    • This is a fairly compact solution for small to medium-sized networks, especially in environments that need to power multiple devices over Ethernet without needing separate power supplies.
    • Cost-effective compared to more complex PoE switches with more ports or higher-speed uplinks.

Applications:

  • IP Camera Networks: Powering and connecting surveillance cameras.
  • VoIP Phones: Powering IP phones for business setups.
  • Wireless Access Points: Powering and connecting APs for extending wireless coverage.
  • Small Office or Home Networks: Connecting various devices while providing power over Ethernet.

Important Considerations:

  • Power Budget: Depending on the number of PoE+ devices connected, the total power budget of the switch will determine how many devices can be powered at once. For 8 ports, the total PoE budget is typically 120W (8 x 25.5W), but it’s essential to check the specific model specs for the exact power budget.
  • Ethernet Speed: The 8 ports are 10/100M, meaning they provide up to 100Mbps speeds. This is fine for many devices, but for high-demand applications (like large file transfers or streaming), you may need a higher-speed switch or additional 2-ports Gigabit.

How to Use:

  • Connect your devices (IP cameras, phones, access points) to the PoE ports.
  • Use the uplink ports to connect the switch to your router or other networking hardware for internet or local network access.
  • If you need a fiber connection for longer distances, plug an SFP module into the SFP port for an optical link.

E-Link EL-208PS  8-Port 10/100M PoE+ 2 Uplink Gigabit Switch 1 SFP 1.25G

The Elink EL208PS 8 Port PoE+ 2 Uplink Port , 1 SFP 1.25G Unmanaged Switch is a versatile and reliable networking solution that offers seamless connectivity and power distribution for various networking needs. With its advanced features and compact design, this switch proves to be an essential component for both small-scale setups and more complex network configurations.Equipped with a robust MAC Address Table capable of accommodating up to 8K entries, the Elink EL208PS switch ensures efficient communication by automatically learning and updating network device addresses. This dynamic addressing capability optimises data transmission and enhances network performance.The switch comes with 8 ports, out of which 1 to 8 are Power over Ethernet (PoE) ports 2 Uplink Network 1-Port and Long Distance Fiber Solution 20KM. These PoE ports provide both data connectivity and power supply, eliminating the need for separate power cables and adapters for PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points. Elink switch is designed to fit seamlessly into various networking setups. Its space-saving design allows for flexible installation, whether it's mounted on a wall, placed on a desktop, or integrated into a network rack.With a power supply of 120W, the switch is well-equipped to handle the energy demands of connected PoE devices, ensuring stable and reliable 10-Port  100/100Mbps 2-Port Uplink Gigabit 1 SFP RJ45 ports allow for a range of network configurations to be supported. Efficient data handling is facilitated by its 4M bit packet buffer, jumbo frame support of 5300 bytes, and 8K MAC address table capacity. With its fan-less design, the Elink EL208PS 10-Port PoE+ Switch maintains a quiet and dependable operation while preserving energy, adhering to IEEE802.3az energy-saving guidelines. Electrostatic standards and surge protection up to ±8KV guarantee robustness and dependability in demanding situations. RJ45 PoE power supply follows standard, providing standardised and efficient power delivery.Weighing at 1000g, the switch strikes a balance between durability and portability, making it easy to deploy and manage within your network infrastructure.The Elink EL-208PS switch comes with a 2-year warranty, underscoring its quality and dependability. Whether you're setting up a small office network, expanding your home network, or enhancing your surveillance system, this unmanaged switch offers the convenience, power, and peace of mind necessary to keep your network running smoothly.


Where to buy authentic E-Link EL-208PS 10-Port 10/100M PoE+ Switch uplink Gigabit in Bangladesh?You can buy 100 % authentic E-Link EL208PS 10-Port 10/100M PoE  2-Port Uplink Gigabit 1 SFP 1.25GB PoE+ Switch for our Online Shop the advantage of free delivery when you buy from our online shop .
