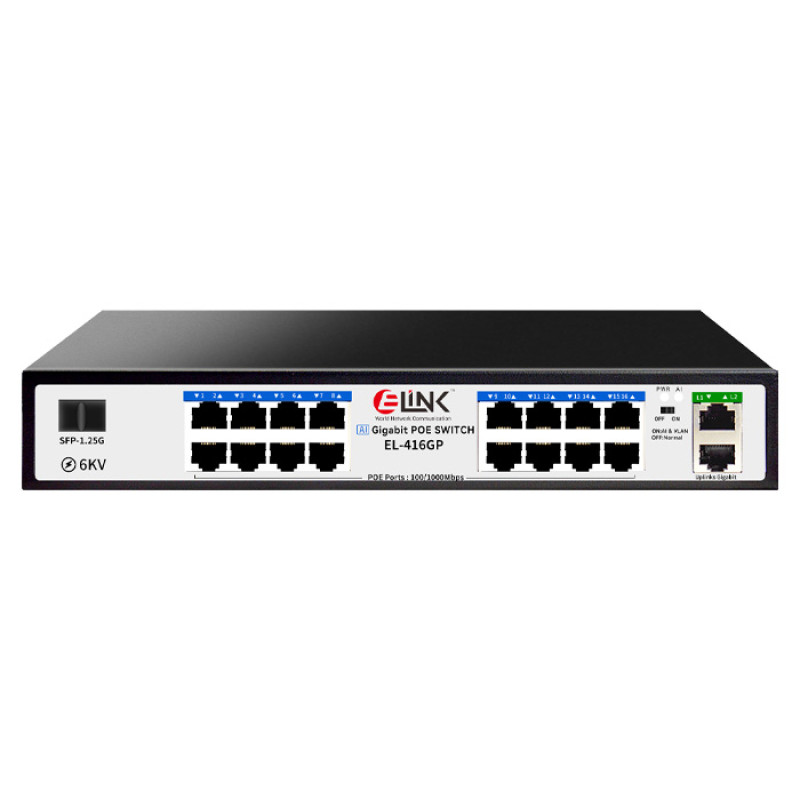

E-Link EL-416GP Gigabit 16-Port PoE+2Uplink+1SFP PoE Switch

Price 13,500৳
Regular Price
Status In Stock
Product Code 7136
Brand
Key Features
  • 16*100/1000mbps PoE Port, 2*100/1000mbps, 1*SFP Port 1.25G
  • 250m Distance, Support IEEE802.3AF/AT
  • Whole Power: 240W(52V 4.8A)
  • All port supported by MDI/MDIX auto flip and self negotiation
  • View More Info

Payment Options

Quantity :
remove add

Please Contract

Phone Number: +880 1324-418026

Specification:

POE SWITCH
Product 20 Port Networking PoE Switch
Model EL-416GP
Lightning Protection 6KV
Surge Protection 8KV
PoE Port 1 to 16 support IEEE802.3AF/AT Standard
Output Power 15.4W/30w : IEEE802.3af/at
Power Pin Both 1/2+ 3/6- and 4/5+7/8
Whole Power 240W(52V 4.8A)
PoE Protocol IEEE 802.3af/IEEE 802.3at
PoE Type End-span
Power Distance <250m
Network Standard IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at
Network Medium 100/1000BASE-TX:5 class and above non shielded twisted pair
Data Distance <250m
Switch Capability 52Gbps
Forwarding Mode Store and forward
Forwarding Rate 100BASE-tx: 14800pps/port
MAC Address MAC address table 16K
Port Function Power priority mechanism, fast and forward, MAC
automatic learning and aging EEEBO2.3X Full-duplex
and mode and backpressure for Half-duplex mode
LED Indicator Each port occupied 1 LINK/ACT.1000Mbps,
POE Status Indicator, Whole power indicator
Working Environment Working temperature: -10 --55 C
Weight 2 kg
Size 295x192x44(L*W*H}mm
Warranty 02 Year

Description :

E-Link EL-416GP  16-Port Gigabit 100/1000M PoE+ 2 Uplink Switch 2SFP 1.25GB

The Elink EL416GP 16-Port PoE+ 2 Uplink Port , 1 SFP 1.25G Unmanaged Switch is a versatile and reliable networking solution that offers seamless connectivity and power distribution for various networking needs. With its advanced features and compact design, this switch proves to be an essential component for both small-scale setups and more complex network configurations.Equipped with a robust MAC Address Table capable of accommodating up to 8K entries, the Elink EL416GP switch ensures efficient communication by automatically learning and updating network device addresses. This dynamic addressing capability optimises data transmission and enhances network performance.The switch comes with 8 ports, out of which 1 to 8 are Power over Ethernet (PoE) ports 2 Uplink Network 1-Port and Long Distance Fiber Solution 20KM. These PoE ports provide both data connectivity and power supply, eliminating the need for separate power cables and adapters for PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points. Elink switch is designed to fit seamlessly into various networking setups. Its space-saving design allows for flexible installation, whether it's mounted on a wall, placed on a desktop, or integrated into a network rack.With a power supply of 240W, the switch is well-equipped to handle the energy demands of connected PoE devices, ensuring stable and reliable 16-Port  100/1000Mbps Gigabit RJ45 ports allow for a range of network configurations to be supported. Efficient data handling is facilitated by its 4M bit packet buffer, jumbo frame support of 8200 bytes, and 8K MAC address table capacity. With its fan-less design, the Elink EL108PS Port PoE+ Switch maintains a quiet and dependable operation while preserving energy, adhering to IEEE802.3az energy-saving guidelines. Electrostatic standards and surge protection up to ±8KV guarantee robustness and dependability in demanding situations. RJ45 PoE power supply follows standard, providing standardised and efficient power delivery.Weighing at 2000g, the switch strikes a balance between durability and portability, making it easy to deploy and manage within your network infrastructure.The Elink EL408GP switch comes with a 2-year warranty, underscoring its quality and dependability. Whether you're setting up a small office network, expanding your home network, or enhancing your surveillance system, this unmanaged switch offers the convenience, power, and peace of mind necessary to keep your network running smoothly.






E-Link EL-416GP Gigabit 16-Port PoE+ switch with additional uplink ports and SFP support is a versatile networking device designed for various applications. Here are some key features and benefits you might expect from such a switch:

Key Features:

  1. 16 PoE+ Ports:

    • Supports Power over Ethernet (PoE+) to power devices like IP cameras, VoIP phones, and wireless access points directly through the Ethernet cable, eliminating the need for separate power supplies.
  2. 2 Uplink Ports:

    • Typically, these can be a combination of additional Gigabit Ethernet ports that allow you to connect to other switches or network devices, enhancing your network's flexibility.
  3. 1 SFP Slot:

    • Small Form-factor Pluggable (SFP) slot for connecting to fiber optic networks, which can improve long-distance networking capabilities.
  4. VPN Capability:

    • This feature might refer to the ability to configure VPN settings, which can secure remote access to your network and protect data transmitted over the internet.
  5. Gigabit Speed:

    • Ensures high throughput for devices connected to the network, making it suitable for bandwidth-intensive applications.
  6. Management Options:

    • Some switches offer managed capabilities, allowing you to configure settings and monitor network performance for optimal management.

Benefits:

  • Centralized Power Management: Streamlines your setup by providing power and data through a single cable.
  • Scalability: Easily expandable with additional uplink and SFP connectivity.
  • Enhanced Security: VPN features can provide secure remote access and data encryption.
  • Faster Data Transfer: Gigabit speeds enhance overall network performance, especially for high-demand applications.

Considerations:

  • Compatibility: Ensure that your connected devices support PoE+ and that the switch meets your networking needs.
  • Cooling and Power Supply: Check that the switch has adequate power supply and cooling solutions to support 16 PoE ports.
