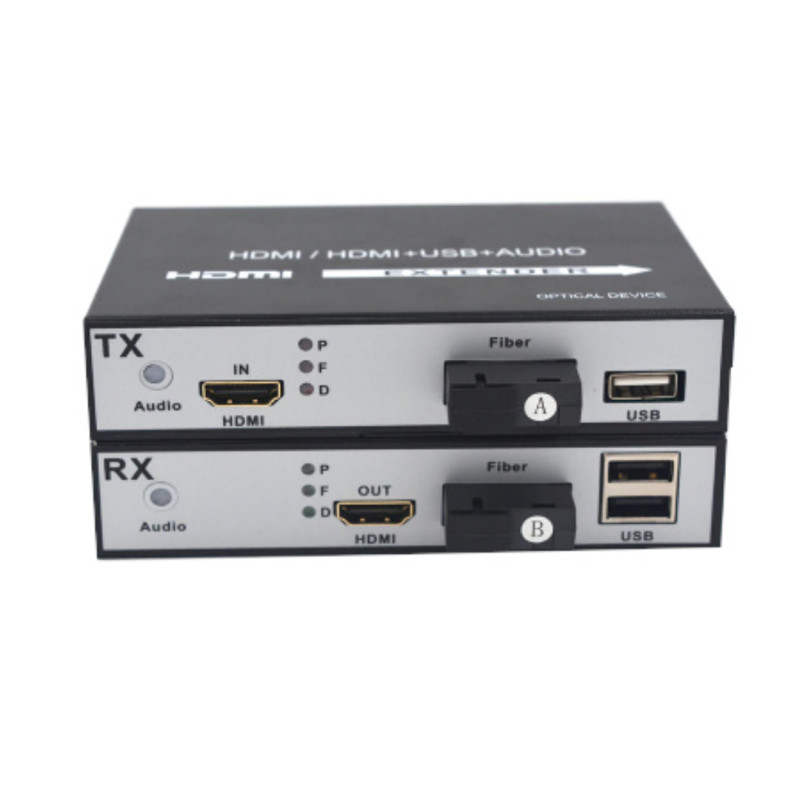

Product description

HDMI fiber extender is a device to use single mode and bidirectional fiber cable to transmit HD audio and video, the longest distance is 20km, and it support one to one and one to many mode.

Features

>Support HDMI 1080p 60Hz.

>It supports one-to-one or one to many transmission and can pass through fiber switch.

>Support single-mode single fiber LC, SC interface module, factory default is LC interface module.

>TX side supports HDMI loop out.

>Support KVM function.

>Support IP transmission.

>Pure hardware design, plug and play, no need to install additional software.

Specifications

>HDMI input -1080p/720p/ 480p

>HDMI output -1080p/720p/ 480p

>Optical fiber wavelength -1310nm/1550nm; 1550nm/1310nm

>Maximum power consumption -TX3.85w; RX3W

>Power adapter specification -Input (50 Hz, 60 Hz) 100v-240 V; Output 5V/1A

>Operating temperature range -(0 to + 45 C)

>Working range -5% to 90% RH (non-condensation)

Package Include

>1x HDMI fiber extender transmitter

>1x HDMI fiber extender receiver

>2x DC 5V power supply

>2x IR cable

>1x USB Male To Male cable

>1x User's Manual
