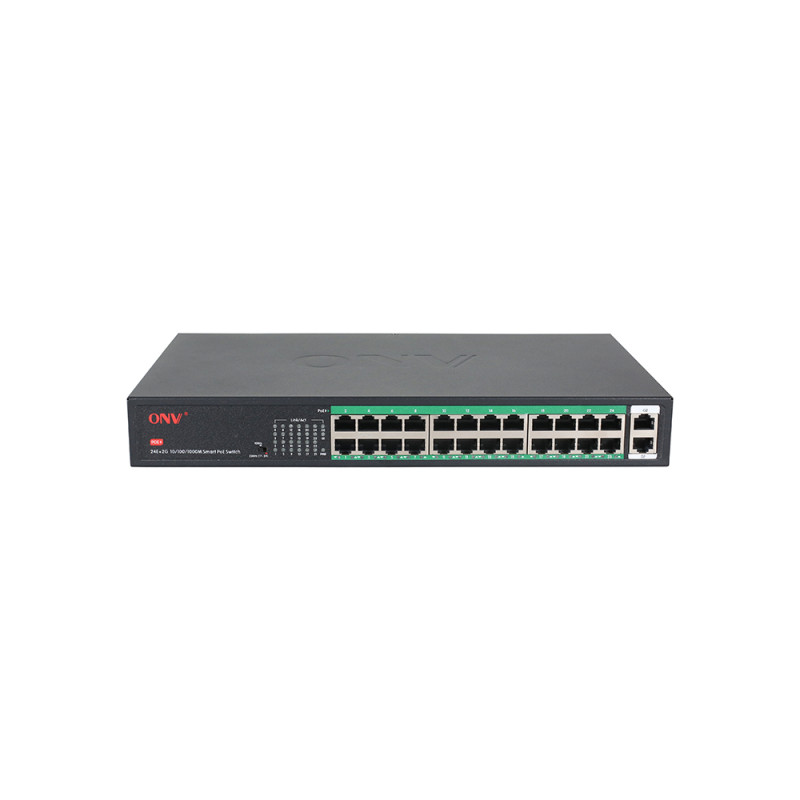

ONV-H1024PLS gigabit uplink 26-Port PoE switch

Price 17,000৳
Regular Price
Status In Stock
Product Code 7032
Brand
Key Features
  • Unmanaged PoE switch with 24*10/100M RJ45 ports.
  • 2*10/100/1000M uplink RJ45 ports.
  • Port 1-24 can support PoE+ power supply.
  • Built-in 250W power supply.
  • View More Info

Payment Options

Quantity :
remove add

Please Contract

Phone Number: +880 1324-418026

Specification:

POE SWITCH
Product 24 Port PoE Switch
Model ONV-H1024PLS
Lightning Protection 4KV
PoE Port 24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
Output Power 250W (AC100-240V)
Power Pin 1/2(+) 3/6(-)
Whole Power 250W
PoE Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
Power Distance 250M
Network Standard IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Data Distance 250M
Switch Capability 14.8Gbps (Non-blocking)
Forwarding Mode Store and Forward(Full Wire Speed)
MAC Address 16K
LED Indicator Power: PWR (Green), Network: Link(Green), PoE: PoE (Green)
Working Environment -20~+55°C, 5%~90% RH Non condensing
Weight 1.85kg / 2.4kg
Size 330*204*44mm

Description :

The ONV-H1024PLS is a 26-port Gigabit PoE switch designed to provide network connectivity and power over Ethernet (PoE) for various devices such as IP cameras, wireless access points, and VoIP phones. Here’s a breakdown of what this type of switch typically offers:

Key Features:

  1. Gigabit Uplink Ports:

    • The switch provides high-speed gigabit uplink ports for fast data transfer.
    • Uplink ports allow the switch to connect to core network devices, such as routers or additional switches, ensuring high-bandwidth communication.
  2. PoE (Power over Ethernet):

    • This feature enables the switch to deliver both power and data over a single Ethernet cable to devices that require power, like IP cameras or VoIP phones.
    • It eliminates the need for separate power supplies for connected devices, simplifying installations and reducing cable clutter.
  3. Total Ports:

    • Typically, this switch would have 24 Ethernet ports for devices that require PoE, plus 2 additional Gigabit uplink ports for connecting to the rest of the network infrastructure.
  4. PoE Standards:

    • It likely supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), allowing it to deliver various power levels (up to 25.5W per port for PoE+).
  5. Advanced Network Management:

    • Many enterprise-grade switches offer features such as VLAN support, Quality of Service (QoS), port security, and network monitoring to optimize performance and security.
  6. Layer 2 Switching:

    • It may operate as a Layer 2 switch, offering MAC address learning, packet switching, and VLAN segmentation.

Benefits:

  • Cost and Space Saving: Since the switch combines data and power, it reduces the need for separate power adapters for connected devices.
  • Scalability: With 26 ports, the switch offers flexibility to scale your network by adding more PoE-powered devices like IP cameras or phones.
  • Reliable Uplink: The gigabit uplink ensures your network has enough bandwidth for high-speed data transfer, which is crucial for environments that require fast and reliable connections.

Typical Use Cases:

  • Security Camera Networks: PoE switches are often used in IP camera surveillance systems because they simplify installation by providing power and data over a single cable.
  • VoIP Telephony Systems: Powering VoIP phones with PoE eliminates the need for a separate power source, streamlining installation.
  • Wireless Access Points: They can power wireless access points to extend network coverage without requiring additional power cables.

If you're considering this switch for a particular project or network setup, make sure to verify its specifications, such as the total PoE power budget and any other management features it offers.
