Main Features

Fingerprint Capacity: 3,000

Face Capacity: N/A

ID Card Capacity: 5000(Optional) ID or Mifare card

Display: 2.4-inch TFT LCD Color Screen

Communication: RS232*, RS485*, TCP / IP, USB-host, Wi-Fi

Standard Functions: DST, Automatic Status Switch (Optional), Record query, T9 input, 14-digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS

Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Others: Transaction Capacity: 30,000

Sensor: Z-ID Sensor (optional)

Algorithm Version: ZKFinger V10.0

Wiegand Signal: Input, Output

Physical Specification

Dimension: 158.5 x 78.0 x 19.4mm (LxWxH)

Power Supply: Power Supply: 12V DC, 3A

Operating Temperature: 0 °C - 45 °C

Operating Humidity: 20% - 80%

Manufacture Warranty

Warranty: 01 year warranty

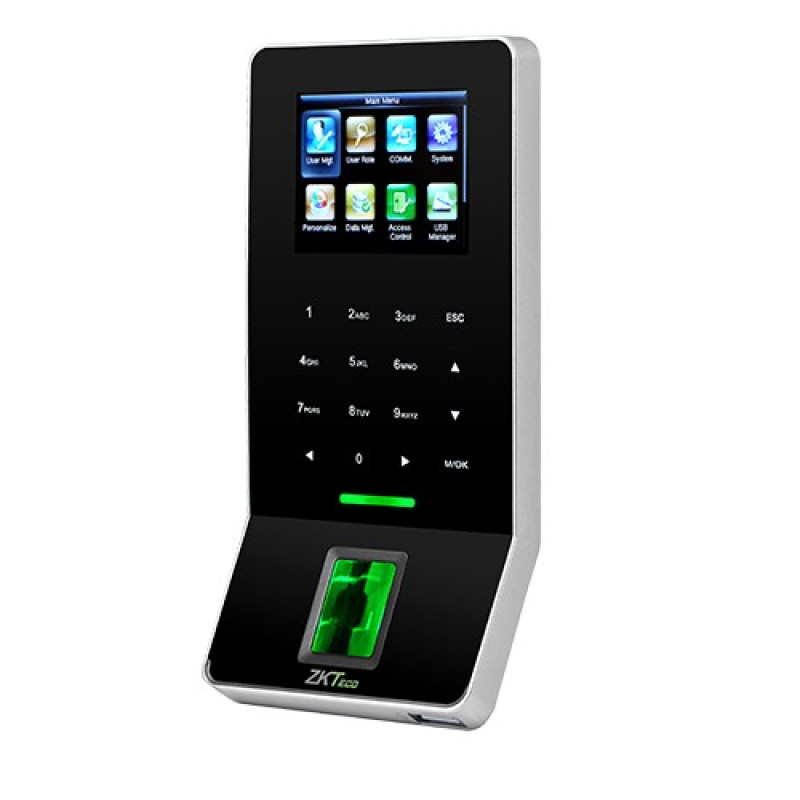

ZKTeco F22 Fingerprint Time Attendance and Access Control Terminal

The ZKTeco F22 is an ultra-thin fingerprint time attendance and access control terminal with Wi-Fi, which offers unparalleled performance with advanced algorithms for reliability, precision, and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor. F22 provides a superior touching experience with a touch keypad and offers flexibility for standalone installation or with any third-party access control panel that supports standard Wiegand signal. TCP/IP and Wi-Fi are also available and the device can be used in different networks.
